Introduction

One of the method's that Raynet One allows you to extend it's inventory capabilities is through custom inventory scripts. The following Python scripts gather information about a devices desktop monitor and applications that were installed from the Microsoft Store.

Win32_DesktopMonitor Script

Description

This Python script gathers certain properties from the Win32_DesktopMonitor WMI class.

Script

PythonConnector.info("Querying Win32_DesktopMonitor WMI class")

# Properties to retrieve
properties = ["DeviceID", "Availability", "Caption", "MonitorType", "Name", "MonitorManufacturer", "PixelsPerXLogicalInch", "PixelsPerYLogicalInch", "PNPDeviceID", "Status"]

# Build WMIC command to get those properties separated by commas
wmic_props = ",".join(properties)
cmd = f'wmic desktopmonitor get {wmic_props} /format:list'

PythonConnector.info(f"Running command: {cmd}")
output_lines = PythonConnector.run(cmd)

# Parse the output into records
monitors = []
monitor = {}
for line in output_lines:
line = line.strip()
if line == "":
# End of one monitor record
if monitor:
monitors.append(monitor)
monitor = {}
else:
if "=" in line:
key, val = line.split("=", 1)
if key in properties:
monitor[key] = val

# Add each monitor as an item with those properties
for mon in monitors:
item = PythonConnector.create_item("DesktopMonitor", mon.get("DeviceID", "UnknownMonitor"), True)
PythonConnector.add_property("Evidence", "PY", item)
for prop in properties:
val = mon.get(prop, "N/A")
PythonConnector.add_property(prop, val, item)
PythonConnector.add_item(item)

PythonConnector.info(f"Found and added {len(monitors)} desktop monitor(s)")

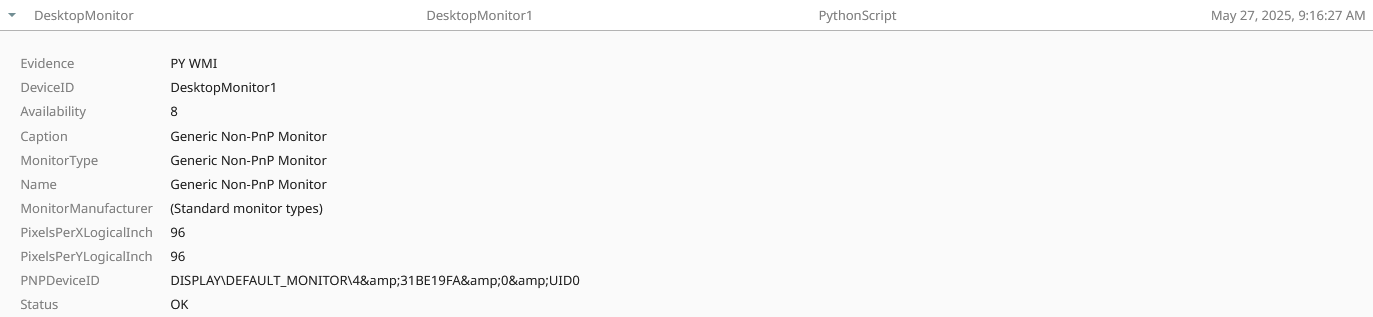

Staged Results

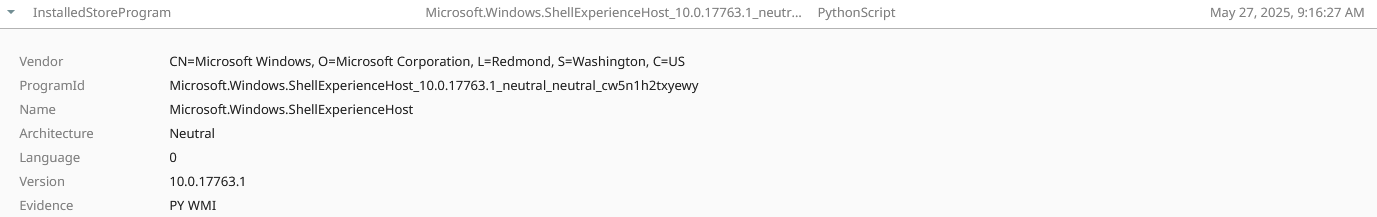

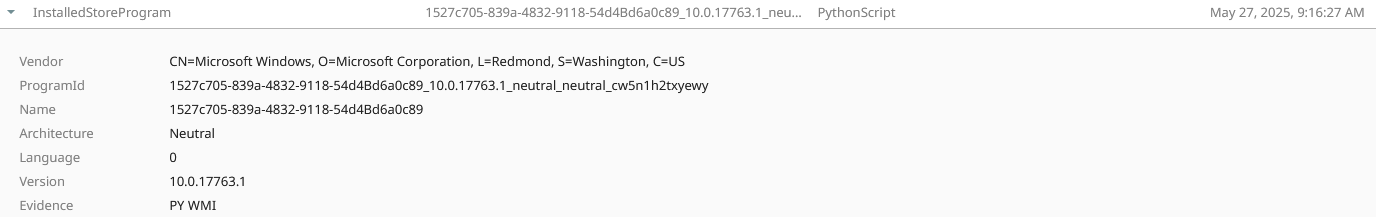

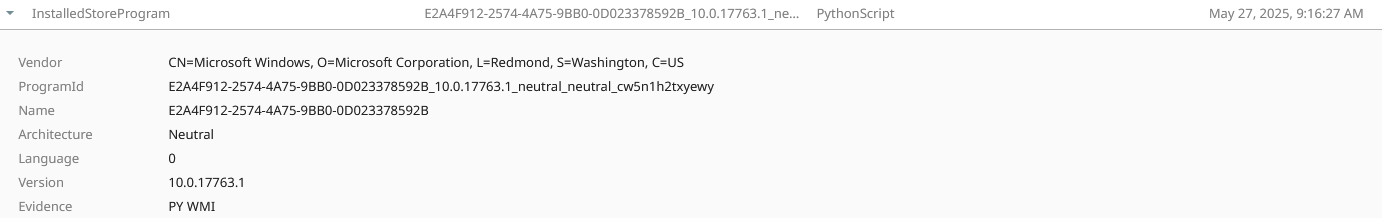

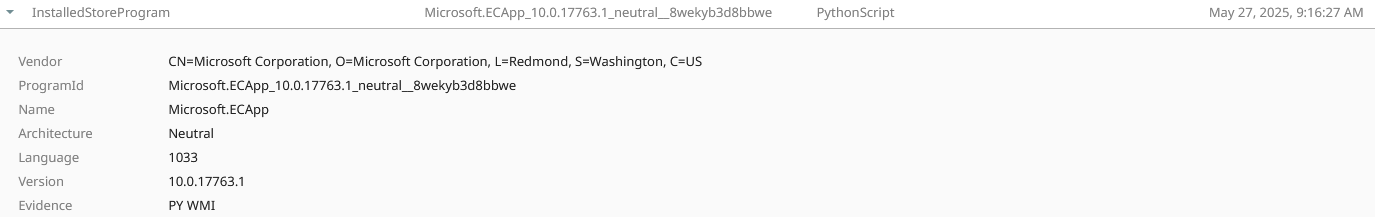

Win32_InstalledStoreProgram Script

Description

This Python script gathers all properties from the Win32_DesktopMonitor WMI class.

Script

# PythonConnector WMI Store Program Inventory Script
PythonConnector.info("Starting WMIC Win32_InstalledStoreProgram inventory")

def collect_store_programs():
cmd = 'wmic path Win32_InstalledStoreProgram get /format:list'
raw_output = PythonConnector.run(cmd, True)

# Combine multi-line command output into a single string
output_str = "\n".join(raw_output).strip()

if not output_str:
PythonConnector.warn("No output returned from WMIC command")
return

programs = output_str.split("\n\n")
for program in programs:
lines = program.strip().splitlines()
props = {}
for line in lines:
if "=" in line:
key, value = line.split("=", 1)
props[key.strip()] = value.strip()

if props:
# Create inventory item with default name (e.g., ProgramId or PackageName if available)
name = props.get("PackageName") or props.get("ProgramId") or "InstalledStoreProgram"
item = PythonConnector.create_item("InstalledStoreProgram", name)

# Add all properties to the item
for key, value in props.items():
PythonConnector.add_property(key, value, item)

# Optional evidence tags
PythonConnector.add_property("Evidence", "WMI", item)

# Submit the item
PythonConnector.add_item(item)

try:
collect_store_programs()
PythonConnector.info("Inventory collection completed successfully")
except Exception as e:
PythonConnector.error(f"An error occurred: {str(e)}")
